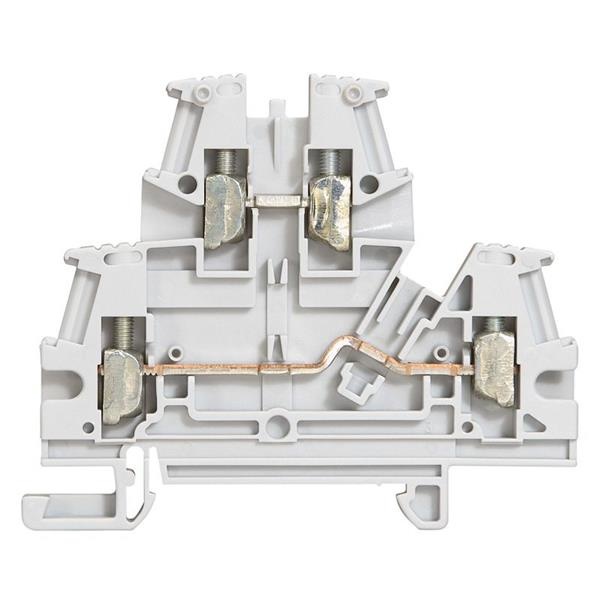

LEGRAND Schroefklem 2 verbindingen - 2 verdiepen - 4 mm² (spoed 6mm), grijs

Item number: LE037168 | EAN: 3245060371685

DESCRIPTION
Screw terminal block, 2 connections – 2-tier – 4 mm² (6 mm pitch), grey – Viking 3
Connectable conductor cross-section, fine-stranded without ferrule: 0.25 mm² - 6 mm² Connectable conductor cross-section, fine-stranded with ferrule: 0.25 mm² – 4 mm² Connectable conductor cross-section, single-strand: 0.25 mm² – 6 mm² Connectable conductor cross-section, multi-strand: 0.25mm² - 4mm² Nominal (measuring) current In: 32A Rated voltage: 500V Type of electrical connection 1: Screw connection Type of electrical connection 2: Screw connection Connection position: Side Mounting method: 35 mm DIN rail Insulation body material: Thermoplastic Operating temperature: -5°C to 40°C Flammability class of insulation material in accordance with UL 94: V2 Width/pitch: 6 mm Height at lowest possible mounting height: 62.5 mm Length: 75 mm End cap required: Yes Base colour: Grey

4,39 €

Magazijn ✔ 40 op voorraad Levertijd 1 tot 3 dagen

Voorraad leverancier Niet op voorraad

EAN: 3245060371685 | Art: LE037168

Recupel-bijdrage inclusief
