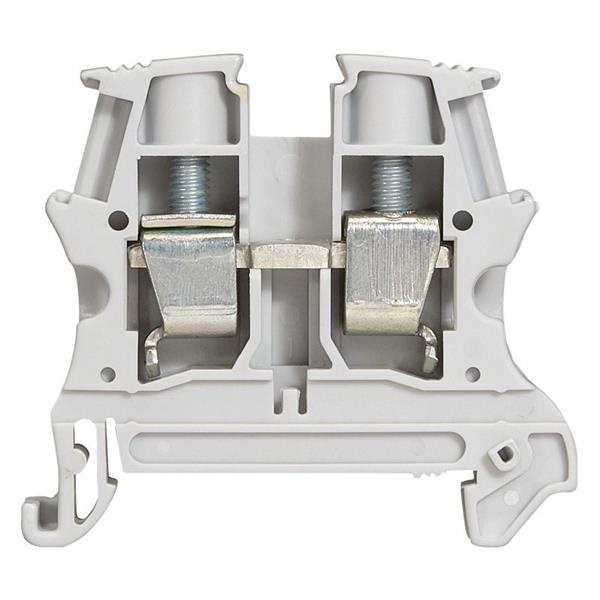

LEGRAND Schroefklem 1 verbinding 10mm² (spoed 10 mm), grijs

DESCRIPTION
Screw terminal, 1 connection, 10mm² (10 mm pitch), grey - Viking 3
Connectable conductor cross-section, fine-stranded without ferrule: 1.5mm² - 16mm²
Connectable conductor cross-section, fine-stranded with ferrule: 2.5mm² - 10mm²
Connectable conductor cross-section, single-stranded: 1.5mm² - 16mm²
Connectable conductor cross-section, multi-stranded: 2.5mm² - 10mm²
Nom. (Measuring) current In: 57A
Rated voltage: 800V Electrical
connection type 1: Screw terminal
Electrical connection type 2: Screw
terminal Connection position: Side
Number of connection levels: 1
Number of terminal positions per connection level: 2
Mounting method: 35mm DIN rail Insulation
body material: Thermoplastic
Operating temperature: -5°C – 40°C
Flammability class of insulation material in accordance with UL 94: V2
Width/pitch: 10 mm
Height at lowest possible mounting height: 46.5 mm
Length: 52.5 mm
Explosion-tested version Ex-e: Yes
Cover plate required: Yes
Colour: Grey
Internally connected tiers: No
