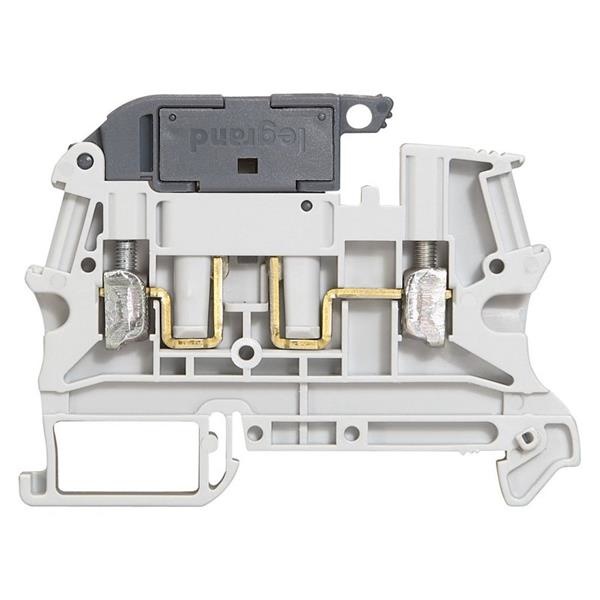

LEGRAND Schraubklemme für Sicherungen 5x20 – 1 Anschluss 4 mm² grau

DESCRIPTION
Screw terminal isolator for 5x20 fuse - 1 connection 4mm² grey - Viking 3
Connectable conductor cross-section (stranded wire without ferrule): 0.25mm² - 2.5mm²
Connectable conductor cross-section (stranded wire with ferrule): 0.25mm² - 2.5mm²
Connectable conductor cross-section, single-core: 0.25mm² - 2.5mm²
Connectable conductor cross-section, multi-core: 0.25mm² - 2.5mm²
Nom. (measuring) current In: 6.3A
Rated voltage: 250V Electrical
connection type 1: Screw connection Electrical
connection type 2: Screw
terminal Connection position: Side
Number of connection levels: 1
Number of terminal positions per connection level: 2
Mounting method: 35 mm DIN rail
Insulation body material: Thermoplastic
Operating temperature: -5°C – 40°C
Flammability class of insulation material in accordance with UL 94: V2
Width/pitch: 6 mm
Height at lowest possible mounting height: 52.5 mm
Length: 71.5 mm
Explosion-tested version Ex-e: No
Cover plate required: Yes
Colour: Grey
Internally connected tiers: No
