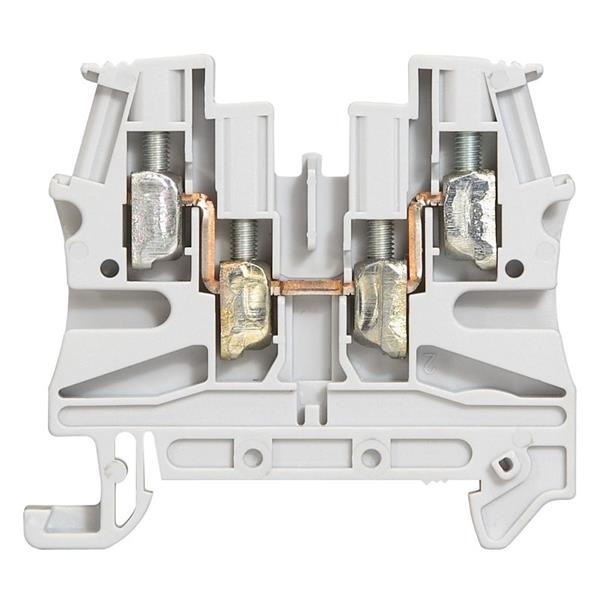

LEGRAND Schraubklemme, 1 Anschluss – 2 Eingänge/2 Ausgänge, 4 mm² (Gewindesteigung 6 mm), grau –

Item number: LE37169 | EAN: 3245060371692

DESCRIPTION
Screw terminal 1 connection - 2 IN/ 2 OUT 4 mm² (6 mm pitch), grey - Viking 3
Connectable conductor cross-section, fine-stranded without ferrule: 0.25 mm² - 6 mm² Connectable conductor cross-section, fine-stranded with ferrule: 0.25 mm² – 4 mm² Connectable conductor cross-section, single-core: 0.25 mm² – 6 mm² Connectable conductor cross-section, multi-strand: 0.25mm² - 4mm² Nominal (measuring) current In: 32A Rated voltage: 500V Type of electrical connection 1: Screw connection Type of electrical connection 2: Screw connection Connection position: Side Number of connection levels: 1 Number of terminal positions per connection level: 4 Mounting method: 35 mm DIN rail Insulation body material: Thermoplastic Operating temperature: -5°C – 40°C Flammability class of insulation material in accordance with UL 94: V2 Width/pitch: 6 mm Height at lowest possible mounting height: 51.5 mm Length: 57 mm Explosion-tested version Ex-e: Yes End cap required: Yes Colour: Grey Internally connected tiers: No

4,91 €

Lager ✔ 21 auf Lager Lieferzeit 1 bis 3 Tage

Lieferantenbestand Nicht auf Lager

EAN: 3245060371692 | Art: LE37169

Recupel-Beitrag inklusive

In den Warenkorb

Jetzt kaufen

Auf die Wunschliste
